Insulation

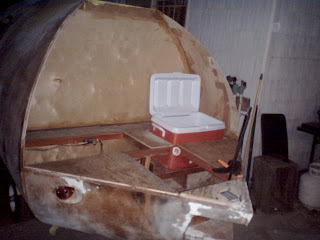

The back is insulated with 3/4 Styrofoam board.

























I went with expanding foam insulation, while it did give me the results I wanted. It was expensive, messy, and expensive.

More better propane tank

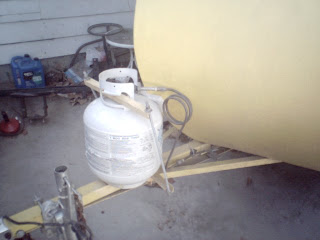

While in Florida I installed a larger propane tank. Clamped a piece of angle to the tongue and used redi bolt to clamp the tank between two pieces of angle. I installed the tank one inch too far back and the tank rubbed the body. Auntie M put a sponge in there that made it from Missouri to Washington state.









Dad wrapped the copper tubbing around a small propane tank three times to make the coil you see, looks cool I think, thanks dad. I tried using a regulator, but my heater will not work with it, so it goes without.











An adapter is required to install the heater. By far the most expensive part of this modification (other than the tank), cause dad gave me the copper.












I left a connection in the galley so I could add a tee and hook my cook stove later.

del

Nevada MO

I spent two days in the town of Nevada MO with some fellow tear droppers. Here are some of their trailers. One person from Arkansas had the ultimate tear drop accessory, a barbecue mounted on the back.








This tear drop you can stand inside the back, where the kitchen is,











here it is folded up for travel.












More of a classic tear drop, simple yes, but miles better than a tent.











Two examples of manufactured teardrops.

del

6000 mile road test

I reinstalled the now matching hatch.
Time to hit the road, Florida here I come.












Here is computer mock up of what I was suppose to build.












Me hiding behind door.













Half way through road test, resting in Florida.

so long for now del

no worries still to come a stop in Nevada MO, propane tank install, fenders, and more.

Odds and ends

The windows need to have a curve, so lexan is in order. Regular plexi may break when you drill hole in it. First I marked in pencil the hole locations evenly around the opening. They are very visible so neatness counts. Next comes a two person job, one holds the glass from the inside (minding where the other person is drilling), and puts a nut and washer on the machine screws as they appear. the other person drills and puts the machine screws through. After all the fasteners are in loosen and apply a sealer, then retighten the fasteners.



I insulated the floor and covered with 3/8" ply. This may sound thin, but nobody walks on the floor, plus it is covered with a mattress. Note concrete gravity clamp to hold floor down while the glue dried.









In the back I found room for the spare and a tyre iron. The stabilizer jacks will lift the tyre off the ground no problems. The tyre liked to flip out of this strap, so a redesign is in order.










Here is my trailer in northern Alabama last December. Note no snow. Florida here I come.

Counters and 12volt

The kitchen gets its fixed counters. The two holes get removable pieces. I have tried velcro, but they bounced out. Someday I will cover this with counter top covering.










Del's thoughts on electrical, make it easy to expand later. for now it gets two lights and power outlet. The hard part of working with a wood trailer is no metal ground, so I used bus bar purchased from an electronics store. The battery I borrowed from a ridding lawn mower (it is my riding lawn mower), yes my battery box will easily handle a bigger battery, and a deep cycle would be better (wheel chair batteries are deep cycle and small). I secured the box and ran all the ground through the bus bar. The battery is charged when the car is running. I have run my 12v electric blanket up to four 45 minute stints on this set up, with no noticeable light dimming.
Inside I installed a fuse box with more circuits than I thought it would ever need. I wired an interior light, a porch light, and a power outlet. Yes I did secure the wires so they look neeter, and you do not snag them when moving about in the trailer.









Here is the porch light controlled from inside. The plan is to add 110 volt later, and it is another subject.

del

Paint and coverings

The bottom was covered with 1/8" ply, then painted with asphalt roof coating. I used two coats, and rubberized undercoating to fill in where I could not reach with the brush. When dry turn back right side up, and do all the body work before bolting to the frame (do not ask).








When the body work is done, primer is in order.













It is time for paint, and to assemble all the hardware back on. I should have waited till now to bolt the body on.











I waited to long to build the hatch, so I had to paint indoors. #$^&&* winter! Yes I used exterior latex, rolled on.

del
